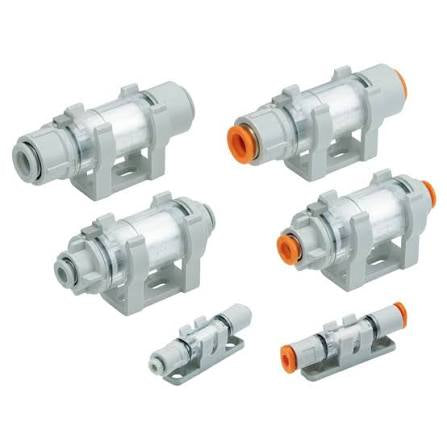

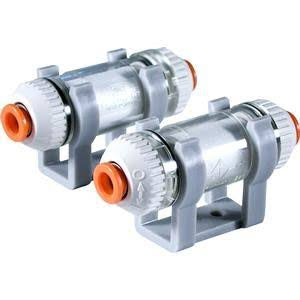

SMC ZFC – Vacuum Filter (In-line Filter)
Price on request
Shipping calculated at checkout.
This product is sold exclusively to commercial customers and specialist companies.
Our prices are net (plus VAT) and may vary depending on quantity, project scope and technical configuration.
For personal advice, a non-binding quote or technical questions, we are happy to assist you at any time.
Please use our contact form for this!
Questions about this product?
We're happy to help.
The SMC ZFC is an in-line vacuum filter that is installed in the vacuum line between pad and ejector or vacuum sensor and retains dust and particles. It protects ejectors, valves and switches from contamination.
Technical data
- Filtration: 10 µm
- Medium: air and nitrogen
- Operating pressure: 0 to –100 kPa (vacuum use only), withstand pressure 0.5 MPa, element differential pressure resistance 0.15 MPa
- Temperature: 0 to 60 °C (no freezing)
- Connection for tube ø4, ø6 or ø8 mm (also inch versions 5/32 to 5/16 inch)
- Recommended flow: 10 l/min (ø4), 20 l/min (ø6, size 100), 30 l/min (ø6, size 200), 50 l/min (ø8); valid at an initial pressure drop of 0.003 MPa or less
- Weight: 11 g (size 100) or 21.5 g (size 200)
- Suitable for nylon, soft nylon, polyurethane and soft polyurethane tubing
Note: do not use in lines where positive pressure is present, as the housing may be damaged. The values are manufacturer data and depend on the individual case.
