ON/OFF Controllers & Position Feedback Transmitters

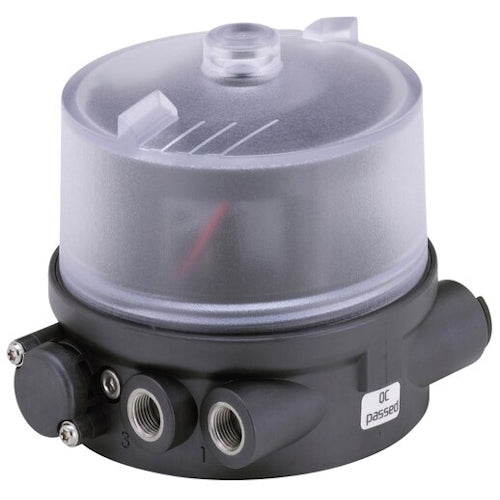

  • Bürkert Type 8690

    Pneumatic actuation for decentralized automation of ELEMENT process valves
    • Compact design
    • Integrated pilot valve with manual override
    • Integrated control air routing into the actuator
    • Visual position indicator
    • With ATEX II Cat. 3G/D and Cat. 2G/D approval

  • Bürkert Type 8691

    Control head for decentralized automation of ELEMENT process valves
    • Non-contact inductive valve position sensing (teach function)
    • Illuminated color status indicator
    • Integrated control air routing into the actuator
    • Fieldbus interface AS-Interface, IO-Link or Bürkert system bus (büS)
    • With ATEX II Cat. 3G/D / IECEx approval

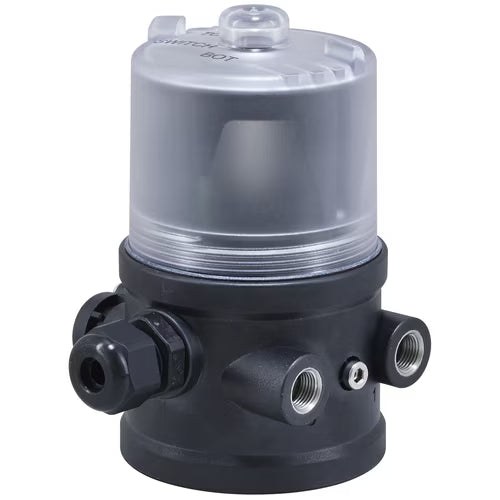

  • Bürkert Type 8697

    Pneumatic actuation for decentralized automation of ELEMENT process valves
    • Compact design
    • Integrated pilot valve with manual override
    • Integrated control air routing into the actuator
    • Automatic adjustment of end position feedback
    • With ATEX II Cat. 3G/D and Cat. 2G/D approval

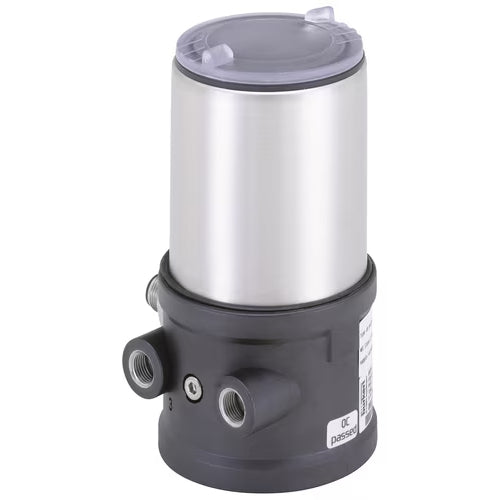

  • Bürkert Type 8695

    Control head for decentralized automation of ELEMENT process valves
    • Non-contact inductive valve position sensing (teach function)
    • Illuminated color status indicator
    • Integrated control air routing into the actuator
    • AS-Interface, IO-Link, Bürkert system bus (büS)
    • With ATEX II Cat. 3G/D approval

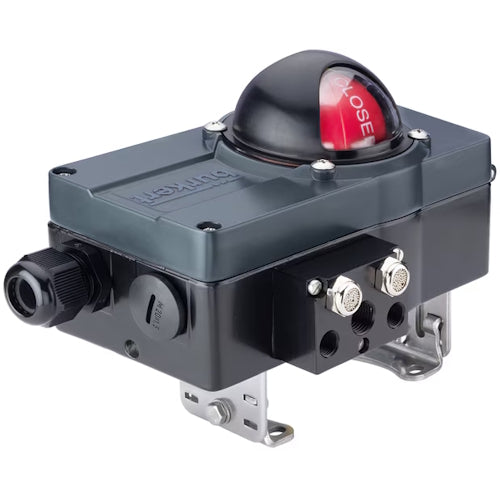

  • Bürkert Type 1061

    Position feedback transmitter for pneumatic rotary actuators
    • Combines the functions of a position feedback transmitter and an optional solenoid valve in one unit
    • Available with 3/2-way, 5/2-way or without solenoid valve
    • ATEX variants available
    • Perfectly suited for pneumatic rotary actuators: Type 2051 and Type 2052
    • Adjustable-size mounting bracket allows use with actuators of different sizes

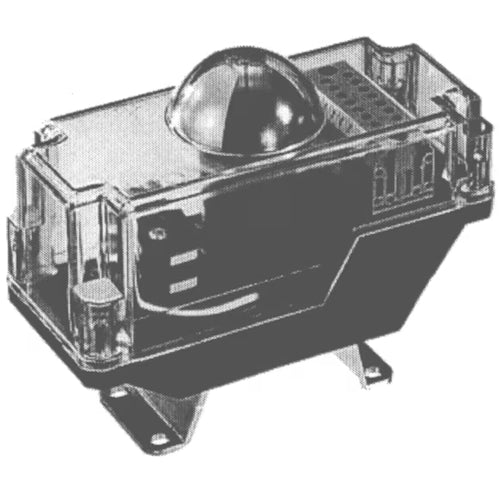

  • Bürkert Type TEU001

    Accessories for pneumatic rotary actuators
    • ATEX variants available
    • Perfectly suited for pneumatic rotary actuators: Type 2051 and 2052

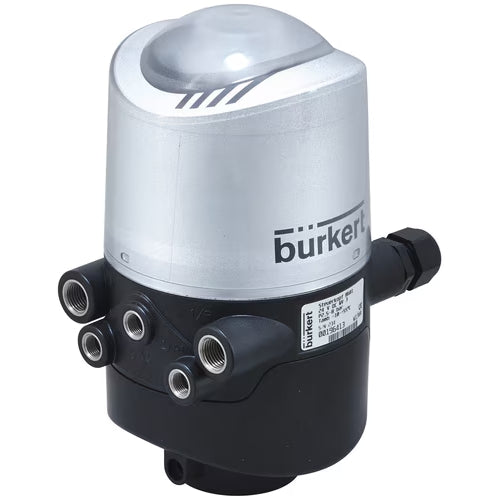

  • Bürkert Type 8681

    Control head for decentralized automation of hygienic process valves
    • Universal actuator adaptation to hygienic process valves
    • Non-contact position sensor with 3 switch points (teach-in function)
    • Illuminated color status indicator
    • Manual override on the closed housing
    • AS-Interface, IO-Link, büS/CANopen

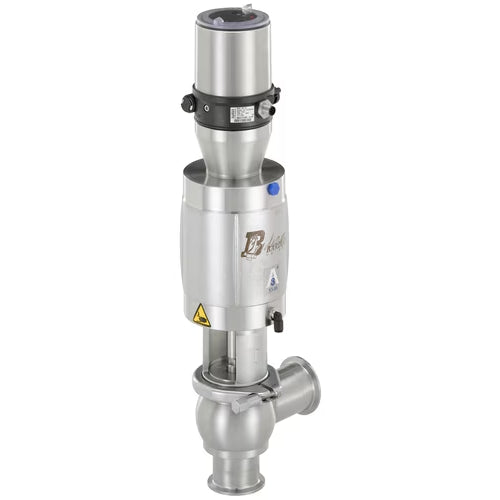

  • Bürkert Type KK01

    Adaptations for hygienic and non-hygienic process valves
    • TopControl ELEMENT positioner and process controller
    • SideCONTROL positioner and process controller, also remote variants
    • Control heads for third-party valves and ELEMENT control heads
    • Comprehensive program for decentralized automation of hygienic and non-hygienic process valves and auxiliary processes
    • Type 8690 – Type 8696, Type 8791 – Type 8793, Type 8635, Type 8681 – Type 8683

Positioners and Process Controllers

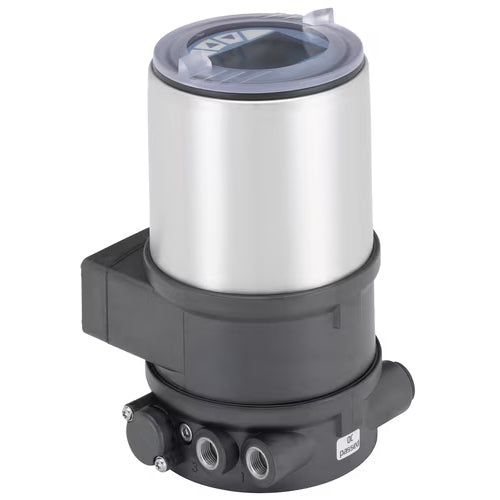

  • Bürkert Type 8692

    Digital electropneumatic positioner for integrated mounting on process control valves
    • Compact and robust stainless steel design
    • Extremely simple commissioning with automatic X-Tune function
    • Non-contact position sensor
    • Integrated control air routing and spring chamber venting
    • EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1 or Bürkert system bus (büS)

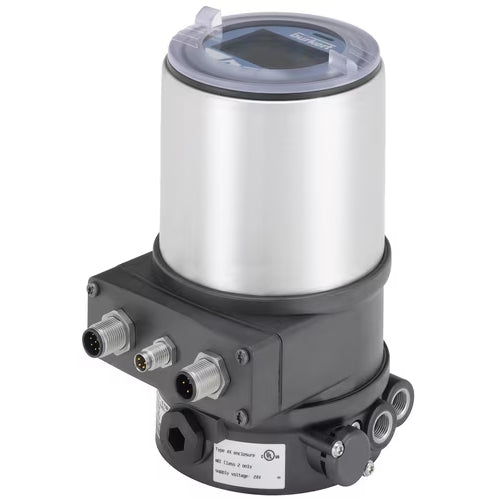

  • Bürkert Type 8693

    Digital electropneumatic process controller for integrated mounting on process control valves
    • Compact and robust stainless steel design
    • Extremely simple commissioning via Tune function for positioner and process controller
    • Non-contact position sensor
    • Integrated control air routing and spring chamber venting
    • PROFIBUS DP-V1, EtherNet/IP, PROFINET, Modbus TCP or büS (Bürkert system bus)

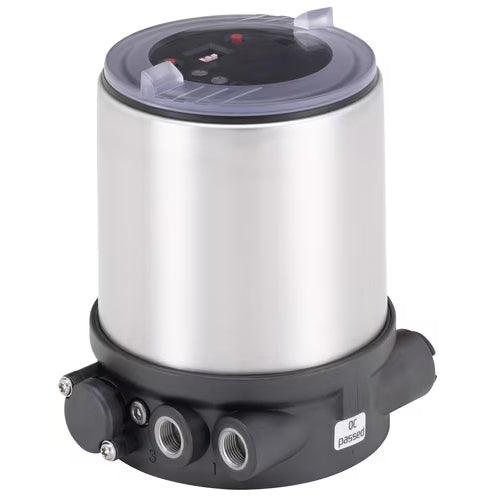

  • Bürkert Type 8694

    Digital electropneumatic positioner for integrated mounting on process control valves
    • Compact and robust stainless steel design
    • Commissioning with automatic TUNE function
    • Non-contact position sensor
    • Integrated control air routing into the actuator
    • AS-Interface, IO-Link or Bürkert system bus (büS)

  • Bürkert Type 8696

    Digital electropneumatic positioner for integrated mounting on process control valves
    • Compact stainless steel design
    • Commissioning with automatic TUNE function
    • Non-contact position sensor
    • Integrated control air routing into the actuator
    • Digital communication IO-Link, Bürkert system bus (büS)

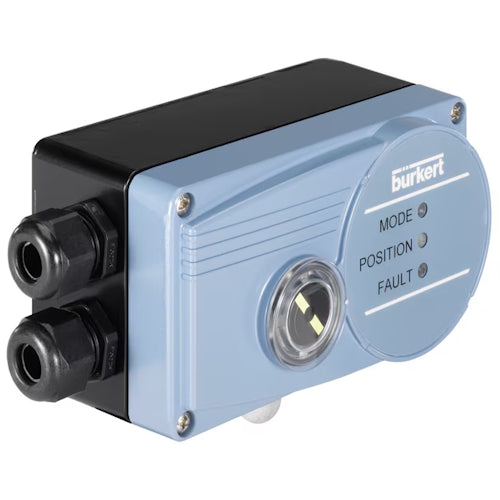

  • Bürkert Type 8791

    Digital electropneumatic positioner SideCONTROL
    • Compact and robust design
    • Easy commissioning via X.TUNE function
    • Integrated diagnostic functions for valve monitoring
    • Dynamic positioning system with no air consumption in the regulated state
    • IO-Link Port Class A & B, AS-Interface or Bürkert system bus (büS)

  • Bürkert Type 8792

    Digital electropneumatic positioner SideCONTROL
    • Compact and robust design
    • Easy commissioning via X.TUNE function
    • Integrated diagnostic functions for valve monitoring
    • Dynamic positioning system with no air consumption in the regulated state
    • EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1 or Bürkert system bus (büS)

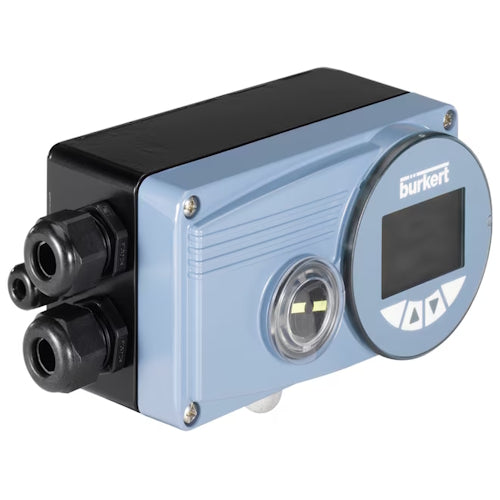

  • Bürkert Type 8793

    Digital electropneumatic process controller SideCONTROL
    • Compact and robust design
    • Commissioning via X.TUNE and P.TUNE function of positioner and process controller
    • Integrated diagnostic functions for valve monitoring
    • Dynamic positioning system with no air consumption in the regulated state
    • EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1 or Bürkert system bus (büS)

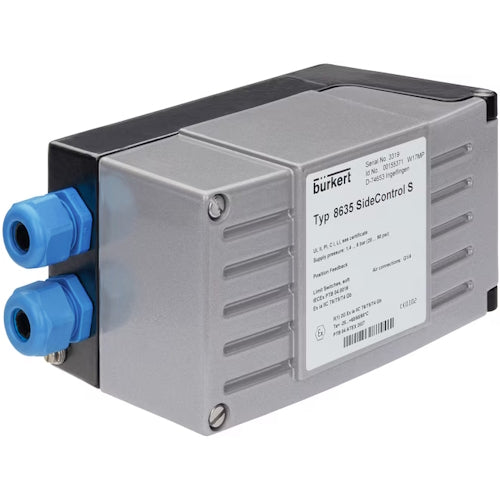

  • Bürkert Type 8635

    Digital electropneumatic positioner SideCONTROL
    • Compact and robust design
    • Easy commissioning via TUNE function
    • Dynamic positioning system with no air consumption in the regulated state
    • Intrinsically safe per ATEX II 2 (1) G Ex ia IIC T6 Gb
    • Optionally with integrated process controller

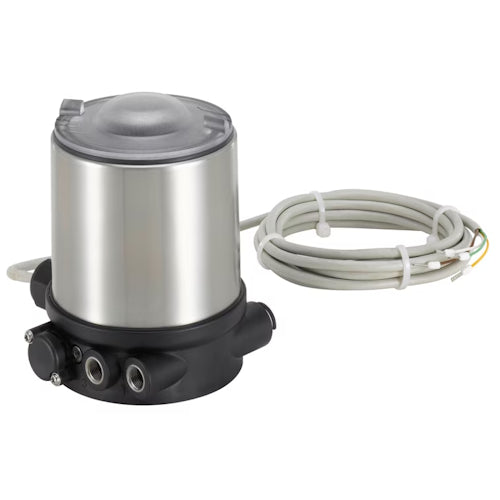

  • Bürkert Type 8798

    Remote sensor for pneumatically operated process valves
    • Digital signal transmission to the remote positioner/process controller
    • Variable cable length selectable
    • Mounting per NAMUR/IEC534-6 or VDI/VDE 3845 (rotary sensor)
    • Integrated mounting on piston actuators (linear sensor)
    • With ATEX II Cat. 3G/D approval (linear sensor)

  • Bürkert Type KK01

    Adaptations for hygienic and non-hygienic process valves
    • TopControl ELEMENT positioner and process controller
    • SideCONTROL positioner and process controller, also remote variants
    • Control heads for third-party valves and ELEMENT control heads
    • Comprehensive program for decentralized automation of hygienic and non-hygienic process valves and auxiliary processes
    • Type 8690 – Type 8696, Type 8791 – Type 8793, Type 8635, Type 8681 – Type 8683

  • Bürkert Type 8611

    eCONTROL – Universal Controller
    • Continuous, 2-point, 3-point and on/off control
    • Ratio control
    • Sensor inputs (4…20 mA, 0…10 V, frequency, Pt100)
    • Actuation of proportional, process and motor valves
    • Stored Bürkert proportional valves and flow meters

Pilot Valves

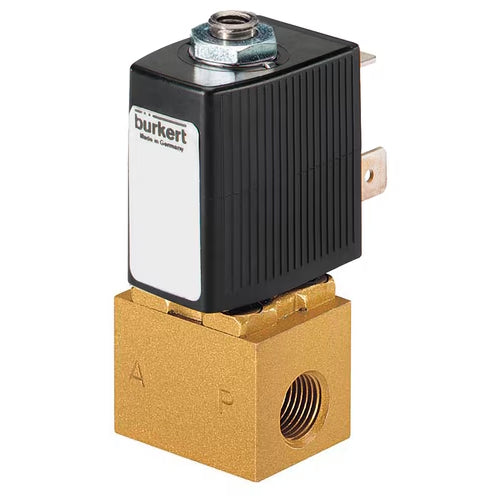

  • Bürkert Type 6012

    3/2-way direct-acting plunger valve
    • Direct-acting, compact small valve up to nominal size DN 1.6
    • Slip-on coil system
    • Banjo fitting for direct mounting on pneumatic valves
    • Simple, fast push-in, flange or sub-base mounting
    • Service-friendly manual override

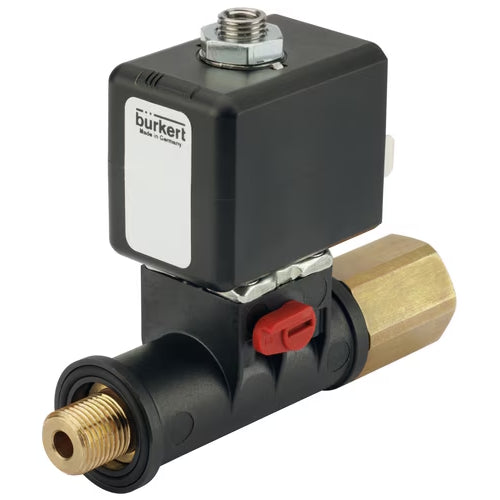

  • Bürkert Type 7012

    3/2-way direct-acting plunger valve
    • Direct-acting, compact small valve up to nominal size DN 1.6
    • Slip-on coil system
    • Banjo fitting for direct mounting on pneumatic valves
    • Simple, fast push-in, flange or sub-base mounting
    • Explosion-proof variants

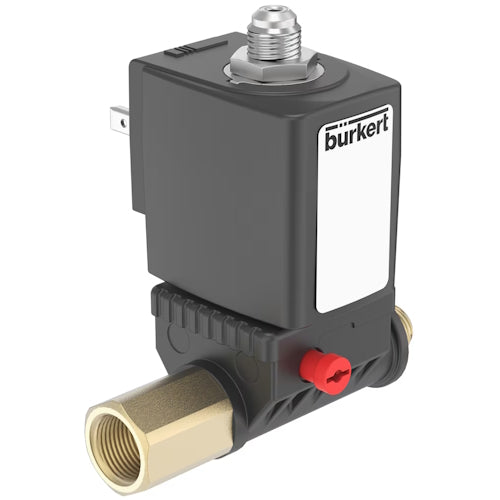

  • Bürkert Type 6014

    3/2-way direct-acting plunger valve
    • Direct-acting, compact valve up to nominal size DN 2.5
    • Vibration-resistant, screwed coil system
    • Banjo fitting for direct mounting on pneumatic valves
    • Explosion-proof variants
    • Energy-saving Kick and Drop variants available

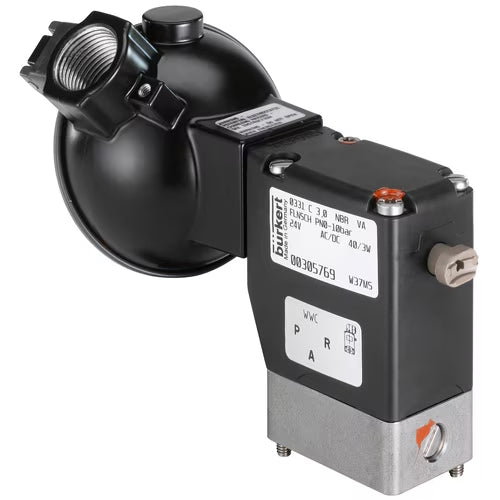

  • Bürkert Type 0331

    2/2-way or 3/2-way direct-acting rocker valve
    • Direct-acting, media-separated valve up to nominal size DN 4
    • Pilot valve with Bürkert-specific flange design (SFB)
    • Maintenance-free rocker technology
    • Service-friendly, robust manual override
    • Explosion-proof variants

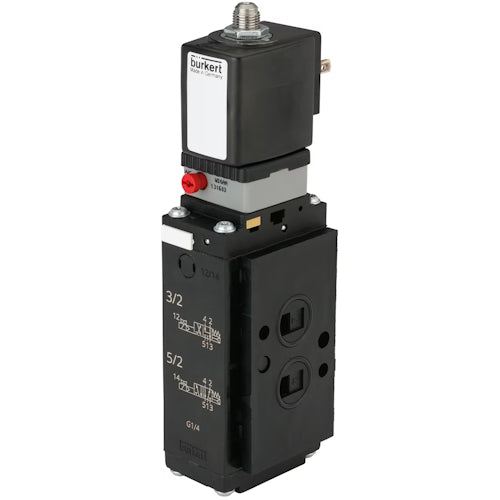

  • Bürkert Type 6519

    Pilot-operated 3/2, 5/2 or 5/3-way solenoid valve for pneumatics
    • High flow rate
    • Low electrical power consumption
    • Single or block mounting
    • Standard, Ex mb, Ex eb mb and Ex ia variants
    • G 1/4” socket, NPT 1/4” and NAMUR flange

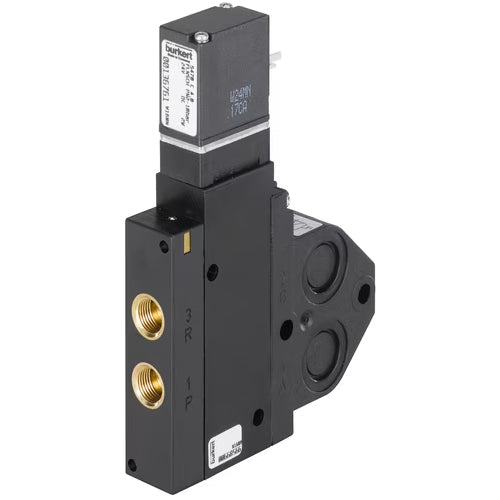

  • Bürkert Type 5470

    3/2 or 4/2-way solenoid valves for pneumatics
    • Compact valve, 3/2-way and 4/2-way variant
    • Can be lined up as a valve block
    • Low electrical power consumption
    • Wide variety of pneumatic connections
    • Rugged design

Valve Islands and Control Cabinets

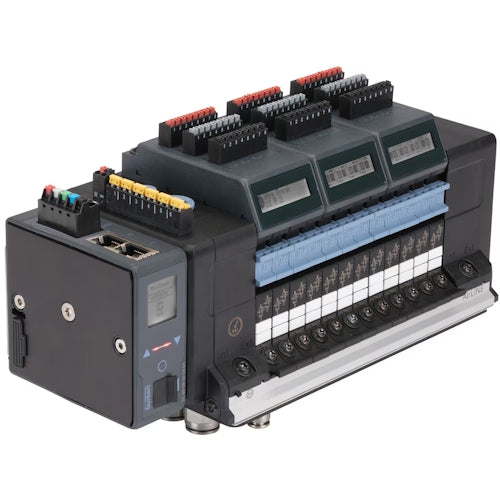

  • Bürkert Type 8652

    AirLINE – The valve island – optimized for process automation
    • Safety-related shutdown of valves possible
    • Higher plant availability with PROFINET S2 (system redundancy)
    • Process safety through pneumatic functions
    • Optimized for mounting on the control cabinet floor
    • Ex variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

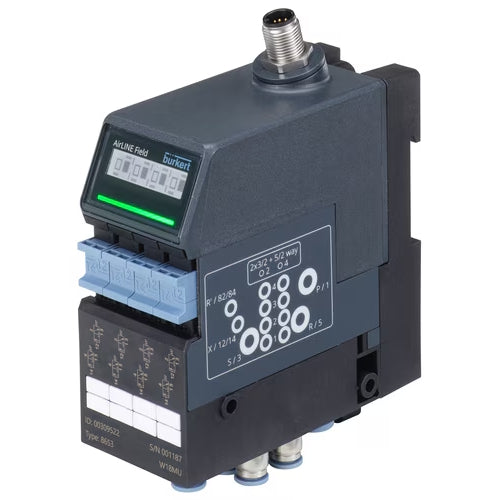

  • Bürkert Type 8653

    AirLINE Field – the valve island – optimized for process automation
    • Fieldbus interface CANopen, IO-Link or büS (Bürkert system bus)
    • Easy diagnostics via LC display
    • Process safety through pneumatic functions
    • Optimized for field mounting (IP65/67)

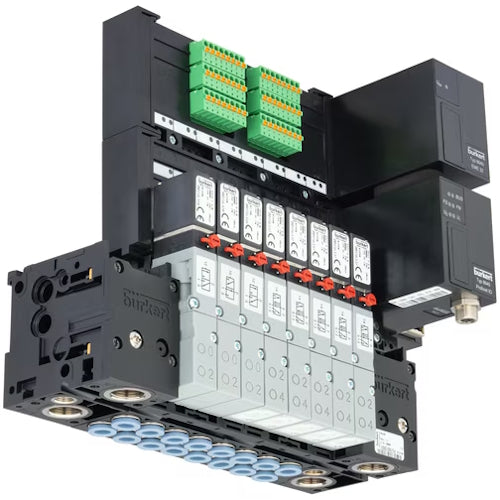

  • Bürkert Type 8640

    Modular valve island for pneumatics
    • Compact design
    • Modular structure
    • Greater flexibility in the control cabinet with AirLINE Quick
    • Easy valve replacement (with P-shutoff, also possible during ongoing operation - optional)

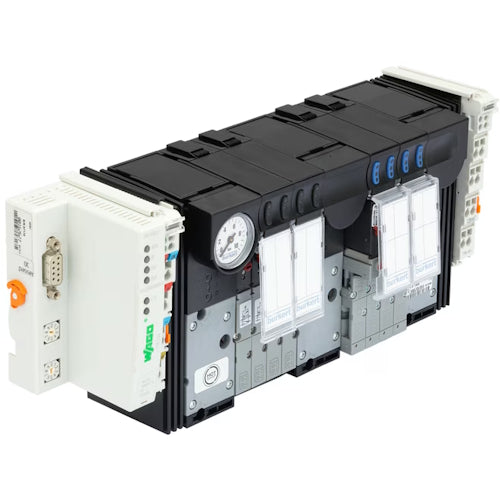

  • Bürkert Type 8644

    Electropneumatic automation system AirLINE
    • Direct connection to the WAGO I/O System 750
    • Innovative fieldbus interface
    • Combination of fieldbus, pilot valves and I/O modules
    • Compact design and high flexibility
    • High flow rates

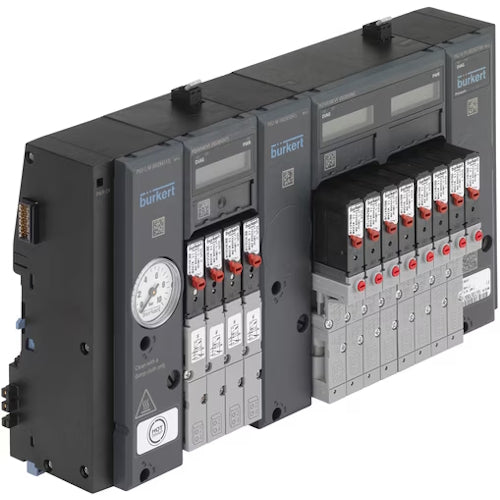

  • Bürkert Type 8647

    AirLINE SP – Electropneumatic automation system
    • Direct connection to the SIMATIC ET 200SP and ET 200SP HA I/O systems
    • Full integration into the Siemens PCS 7 process control system possible
    • Siemens Product Partner for SIMATIC Automation Systems
    • Easy diagnostics via LC display
    • Safety-related shutdown of valves possible

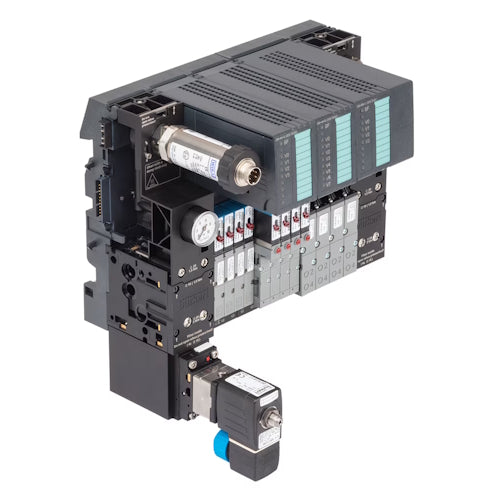

  • Bürkert Type 8650

    AirLINE Ex – electropneumatic automation system for use in potentially explosive atmospheres
    • Designed for use in potentially explosive atmospheres (Zone 1/21)
    • Siemens Product Partner for SIMATIC Automation Systems
    • Actuation via PROFINET IO / PROFIBUS® DP-is, electrical I/O functions via Siemens SIMATIC ET 200 iSP™ modules
    • NEW REV.2 enables new integrable functions such as pressure sensor or pressure switch

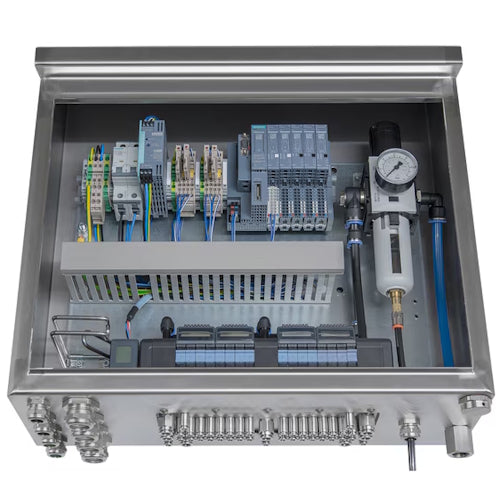

  • Bürkert Type 8614

    Pneumatic control cabinet solutions for the hygienic process environment
    • Optimized cleaning results through HD stainless steel housing (Hygienic Design) to IP65. Available in three widths, each with the same height and depth
    • Four different Bürkert valve island types with up to 40 valve positions and 64 valve functions
    • Lower material and installation effort through process-near placement in hygiene-critical areas
    • Optional assemblies such as pressure monitoring, power supply, wall spacer
    • High process safety through P-shutoff, check valves (R+S) and safety-related shutdown
