Pressure Switches

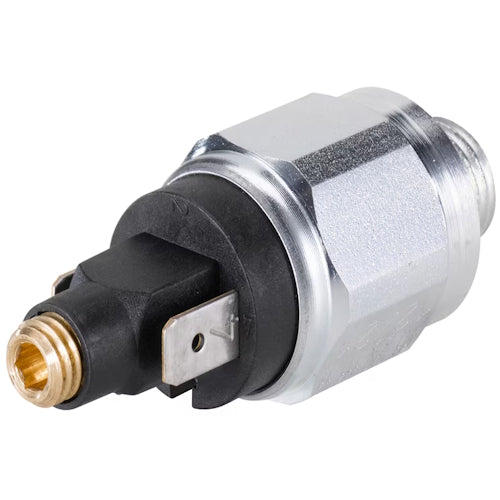

  • Bürkert Type TCD001

    Pressure switch for neutral gases and liquids
    • For neutral gases and liquids
    • Variants: normally closed, normally open or changeover
    • Switch point adjustable via set screw

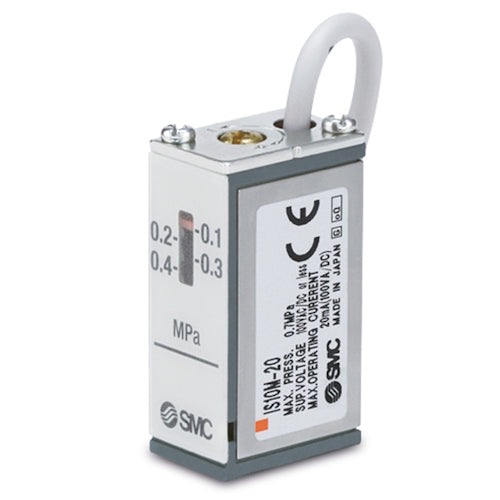

  • SMC Series IS10

    Pressure switch for compressed air and inert gases
    • Compact & lightweight - 16% lighter and 11% smaller than the predecessor model IS1000
    • Long service life - up to 5 million switching cycles
    • Flexible pressure ranges - adjustment range 1–4 (6) bar
    • Easy integration: connects directly to modular FRL maintenance unit
    • Rugged design, test pressure up to 10 bar
    • High repeat accuracy of ±0.5 bar

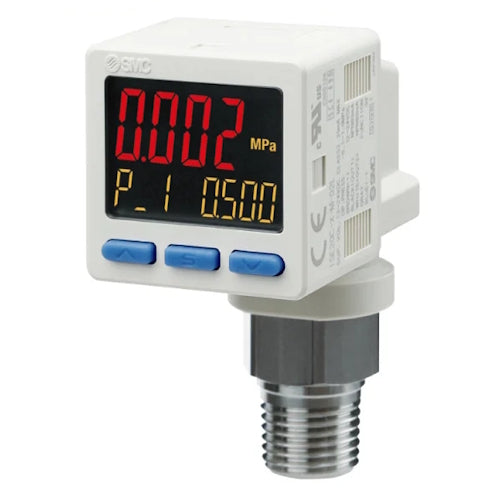

  • SMC Series ISE

    Electronic pressure switch
    • Precise pressure measurement with high resolution and stable readings even under dynamic processes
    • Response time from 2.5ms, ideal for fast pneumatic applications
    • Intelligent functions such as anti-chattering and auto-reference support safe, error-free control
    • Multi-line digital display (pressure, switch points, status information)
    • Flexible outputs (NPN/PNP, analog)
    • Industrial-grade & rugged, depending on version with protection ratings up to IP65

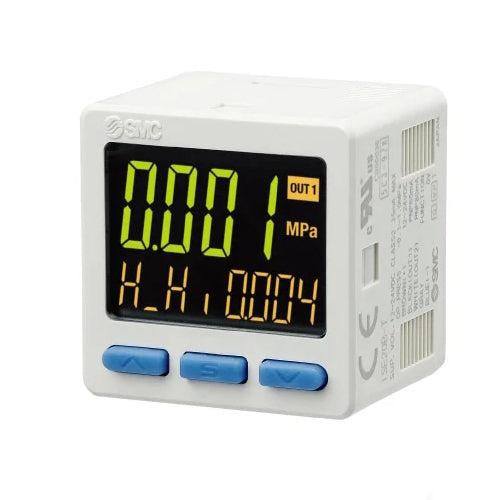

  • SMC Series ZSE

    Electronic vacuum and combination pressure switch
    • Precise vacuum or combination measurement (e.g. ZSE40F for vacuum and positive pressure)
    • Response time from 2.5ms, ideal for fast pneumatic applications
    • Intelligent functions such as anti-chattering and auto-reference support safe, error-free control
    • Multi-line digital display (pressure, switch points, status information)
    • Flexible outputs (NPN/PNP, analog)
    • Industrial-grade & rugged, depending on version with protection ratings up to IP65

Pressure Transmitters

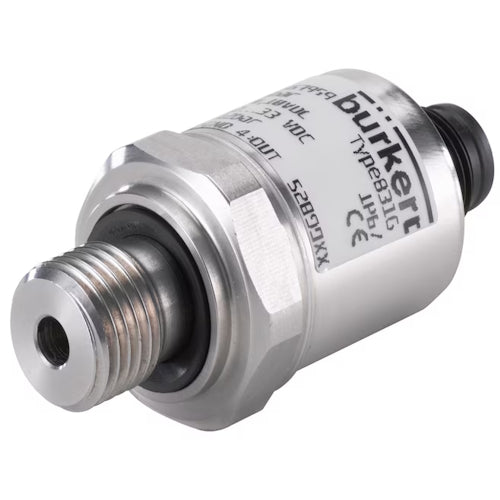

  • Bürkert Type 8316

    Pressure transmitter
    • Ceramic/thick-film measuring cell
    • Two-wire variant for 4...20 mA output
    • Compact, robust design for maximum operational reliability

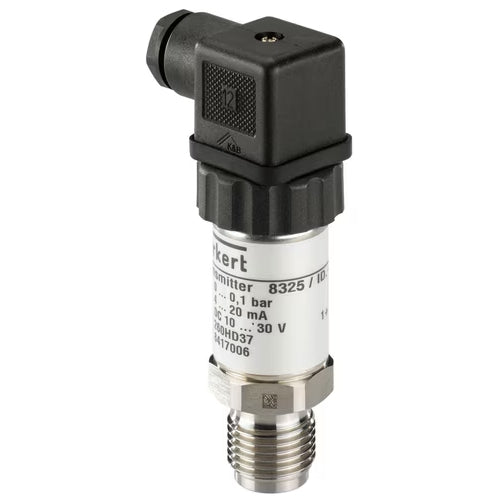

  • Bürkert Type 8325

    Pressure transmitter for general applications, 0…25 bar
    • Available with hygienic flush-mounted diaphragm
    • Housing and media-contact parts made of corrosion-resistant stainless steel
    • Standard signal 4…20 mA for connection to automation systems
    • Connector for fast installation and service
    • Many pressure ranges available

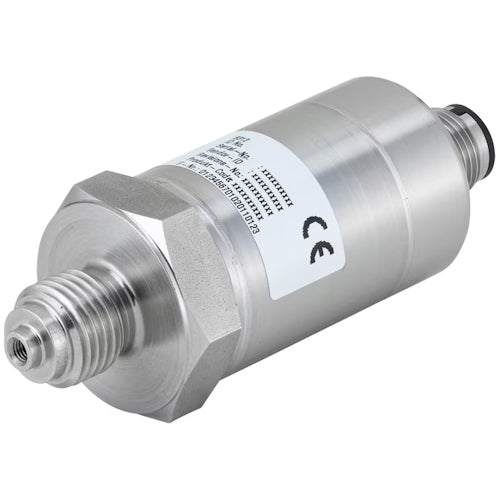

  • Bürkert Type 8312

    Pressure transmitter with CANopen interface
    • Ceramic thick-film or metal thin-film strain gauge measuring principles
    • Process connections: G, NPT in ¼" or G ¾" (with hygienic flush-mounted diaphragm) or clamp 1½"
    • Linearized and temperature-compensated measuring ranges from -1…5 bar or 0…0.25 bar up to 0…16 bar selectable, gauge pressure
    • Medium temperature range depending on measuring principle: -20…+85 °C (ceramic), -40…+125 °C (metal)
    • Access to measured value, device status and settings via the CANopen interface

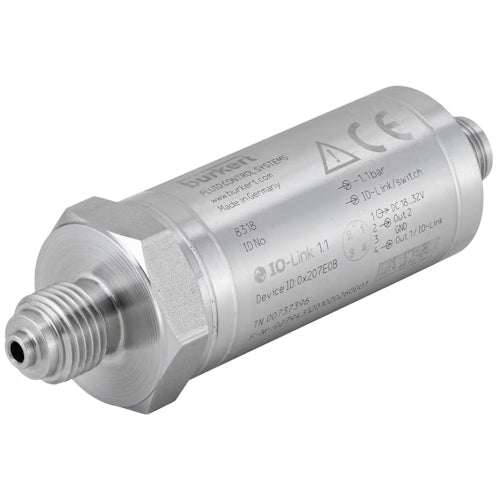

  • Bürkert Type 8318

    Pressure transmitter with IO-Link interface
    • Metal thin-film strain gauge measuring principle
    • Process connections: G, NPT in ¼, G ¾ with hygienic flush-mounted diaphragm or clamp per DIN 32676
    • Gauge pressure measuring ranges from -0.4…+0.4 bar up to -1…+12.0 bar
    • Available switching functions: PNP or NPN
    • Access to measured value, device status and settings via the IO-Link interface, very easy sensor replacement

Electronic Pressure Regulators

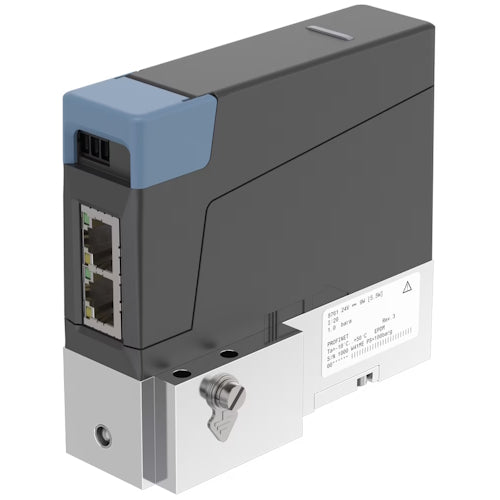

  • Bürkert Type 8761

    Electronic pressure controller (EPC) for gases
    • Precise flow pressure control
    • Upstream pressure controller
    • Suitable for pressure control up to 4 bar abs
    • Integrated PI control algorithm
    • Simplified device replacement via configuration memory

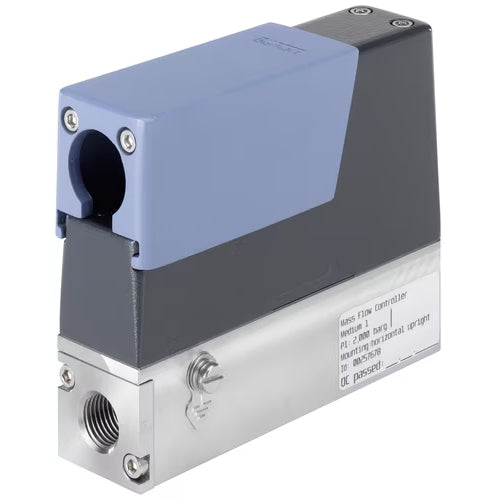

  • Bürkert Type 8762

    Electronic pressure controller (EPC) for gases
    • Precise flow pressure control
    • Upstream pressure controller
    • Suitable for pressure control up to 4 bar abs
    • Integrated PI control algorithm
    • Simplified device replacement via configuration memory
    • Specially designed for use in harsh environments thanks to a high IP protection rating.

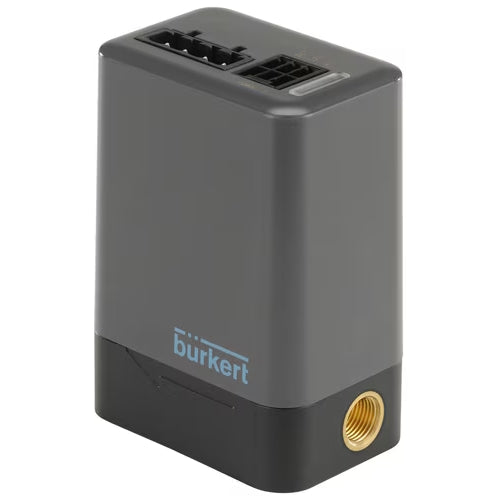

  • Bürkert Type 8763

    Pressure controller for precise pressure-time dosing
    • Repeatable and precise dosing of liquids in the µl range
    • Response time in milliseconds and active pressure relief for best control performance
    • Digital communication for easy integration into your fieldbus network
    • Extended functionality via additional sensor input and actuator output, e.g. for pump or additional pressure sensor
    • Active venting valve to minimize consumption of costly carrier gas

SETRA Druck- und Differenzdrucksensoren

  • Setra Modell 206

    Industrieller Drucktransmitter für Über- und Unterdruck, 25 psi bis 10.000 psi
    • Präzise Druckmessung mit ±0,13 % FS Genauigkeit über den gesamten Messbereich
    • Messbereiche von 25 psi (ca. 1,7 bar) bis 10.000 psi (ca. 690 bar)
    • Robuste Ausführung aus Edelstahl, ideal für raue Industrieumgebungen mit Stoß- und Vibrationsbelastung
    • Vor Ort einstellbare Nullpunkt- und Spannenpotentiometer für einfache Kalibrierung
    • Schutzart NEMA-4/IP65, zahlreiche Druck- und Elektroanschlüsse verfügbar

  • Setra Modell 230

    Wet-to-Wet Differenzdrucktransmitter mit höchster Genauigkeit
    • ±0,25 % FS Genauigkeit – die genaueste Wet-to-Wet-Lösung im Setra Portfolio
    • Messbereiche ab 1 psid, Leitungsdruck bis 350 psi
    • Gas- und flüssigkeitskompatibel, echte Wet-to-Wet-Differenzdruckmessung ohne Ölfüllung
    • Bis zu 20-mal schnellere Ansprechzeit als ölgefüllte Alternativen
    • Einsatzbereiche: Energiemanagement, Prozessregelung, Durchfluss- und Füllstandsmessung, Filterüberwachung

  • Setra Modell 264

    Niederdifferenzdruck-Transmitter für HLK, Reinraum und Pharma
    • Branchenstandard für Niederdifferenzdruckmessung in der Gebäudeautomation seit über 20 Jahren
    • Messbereiche von 0,1 bis 100 "WC (Wassersäule), Überdrucksicherheit bis 10 psi
    • Geschweißte Edelstahl-Kapazitäts-Messzelle für hohe Langzeitstabilität
    • Bewährt in Pharma- und Gesundheitseinrichtungen mit hohen Genauigkeitsanforderungen
    • 3 Jahre Herstellergarantie, über 8 Millionen Installationen weltweit

  • Setra Modell 267

    Konfigurierbarer Multirange-Differenzdrucktransmitter für Reinraum und Pharma
    • Messbereiche von 0,01 "WC bis 100 "WC, flexibel konfigurierbar (Multirange 0,1–100 "WC)
    • Genauigkeitsklassen wählbar: ±0,25 %, ±0,5 % oder ±1 % FS
    • Umfangreiche Anschluss- und Montageoptionen (Wand- oder Kanalmontage, PG-9/PG-13/Conduit)
    • Optionales LCD-Display und statische Drucksonde erhältlich
    • Gehäuse nach NEMA 4, ideal für Reinraum- und Pharmaanwendungen
