Servo-assisted 2/2-way solenoid valves

Depending on the version, a minimum differential pressure of 0.2-0.5 bar is required for complete opening or closing.

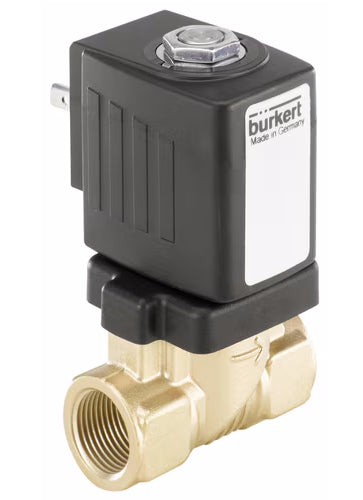

  • Bürkert Type 6213

    Servo-assisted 2/2-way diaphragm valve
    • Servo-assisted diaphragm valve up to nominal size DN40
    • Spring-coupled diaphragm opens without differential pressure
    • Closing-damped and low-noise
    • High flow rate in a compact design
    • Energy-saving dual-coil technology in Kick and Drop variant

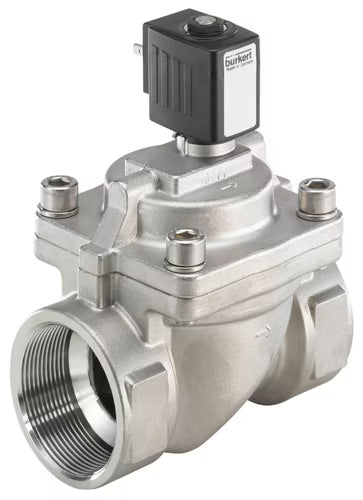

  • Bürkert Type 6281

    Servo-assisted 2/2-way diaphragm valve
    • Servo-assisted diaphragm valve up to nominal size DN50
    • Vibration-resistant, centrally bolted coil system
    • Closing-damped and quiet
    • Energy-saving dual-coil technology in Kick and Drop variant
    • Explosion-proof variants

  • SMC Type JSXD

    Servo-assisted 2/2-way diaphragm valve
    • Higher flow rates with low power consumption
    • Media: air, water, oil
    • Body materials: stainless steel, brass, bronze, aluminum
    • Connection sizes: 1/4" to 2"
    • Advantages: wide range of sizes and connection options, IP67 protection with stainless steel coil housing, low-noise operation

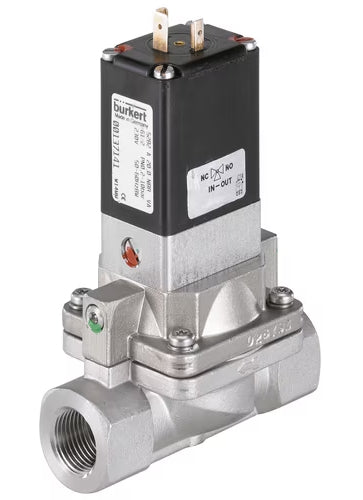

  • Bürkert Type 5282

    Servo-assisted 2/2-way diaphragm valve
    • Servo-assisted diaphragm valve up to nominal size DN 65
    • Limit switch / position feedback optical, mechanical or inductive
    • Individually adjustable closing and opening times
    • Explosion-proof variants (Cat. 2)
    • Service-friendly manual override
    • Separating diaphragm for aggressive and contaminated media

Direct-acting 2/2-way solenoid valves

(switching without differential pressure)

  • SMC Type JSX and VX2

    Direct-acting 2/2-way valve
    • Economical standard solution with low energy consumption
    • The JSX series offers lower energy consumption, quieter operation and consistent IP67 protection.
    • Media: air, water, oil (JSX), vacuum, steam, hot water (VX2)
    • Connection: 1/8" to 1/2"
    • Housing: stainless steel, brass, aluminum, synthetic resin
    • Advantages: Low energy consumption and quiet operation, wide range of voltages & connection types, attractive price-performance ratio

  • SMC Type JSXU

    Direct-acting 2/2-way valve
    • Variant of the JSX series with further reduced holding current
    • Higher Kv values compared to JSX
    • Media: air, water, oil
    • Connection: 1/8" to 3/8"
    • Housing: stainless steel, brass, aluminum
    • Advantages: Holding current from 3W, higher flow capacity than standard JSX, low temperature rise

  • Bürkert Type 6213

    Servo-assisted 2/2-way diaphragm valve
    • Servo-assisted diaphragm valve up to nominal size DN40
    • Spring-coupled diaphragm opens without differential pressure (HP00 version for gas and vacuum applications)
    • Closing-damped and low-noise
    • High flow rate in a compact design
    • Energy-saving dual-coil technology in kick-and-drop variant

  • SMC Type JSXZ

    Pilot-operated version without minimum differential pressure
    • Extension of the JSXD series
    • Media: air, water, oil
    • Connection: 1/4" to 1"
    • Housing: stainless steel, brass, aluminum
    • Advantages: Reliable switching at low differential pressures, compact size, high flow capacity, also usable for vacuum

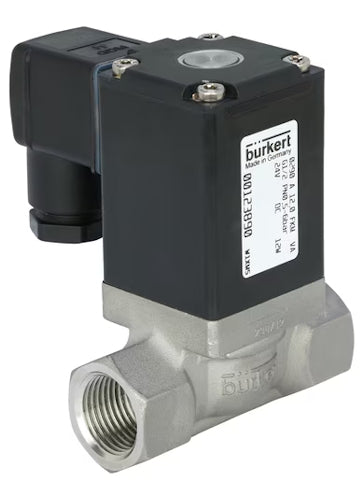

  • Bürkert Type 0290

    Servo-assisted 2/2-way diaphragm valve
    • Servo-assisted diaphragm valve up to nominal size DN50
    • Fixed-coupled diaphragm opens without differential pressure
    • Vibration-resistant, block-mounted coil system
    • Energy-saving power reduction on all DC variants
