SMC PU – Pulse Blow Unit
This product is sold exclusively to commercial customers and specialist companies.
Our prices are net (plus VAT) and may vary depending on quantity, project scope and technical configuration.
For personal advice, a non-binding quote or technical questions, we are happy to assist you at any time.
Please use our contact form for this!
Questions about this product?
We're happy to help.
The SMC PU is a compact pulse blow unit that generates a pulsed blast from the compressed air supply alone, with no external power. According to SMC, intermittent blowing improves removal efficiency by 35% compared with continuous blowing and reduces air consumption by up to 50%.
Technical data
- Operating pressure: 0.3 to 0.7 MPa, proof pressure 1.05 MPa
- Connections: inlet R 1/4 (male thread), outlet Rc 1/4 (female thread)
- Pulse frequency: 5 to 10 Hz, adjustable with a rotary knob
- Recommended nozzle: Ø2.0 mm or smaller, effective area 10.3 mm², no extension nozzles
- Supply tubing: inner diameter at least 5 mm, length 5 m at most
- Temperature –5 to 60 °C (no freezing)

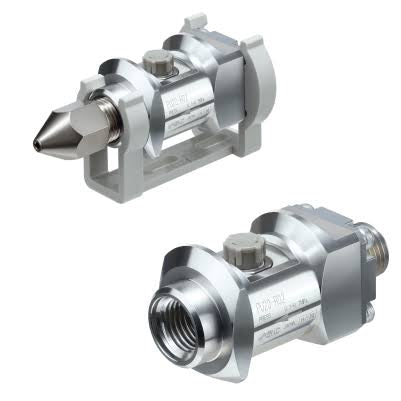

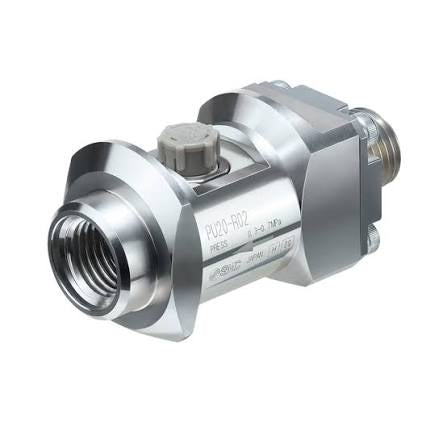

- Aluminium body (PU20-R02-B with bracket) or resin version PU20P-B, weight 47 g

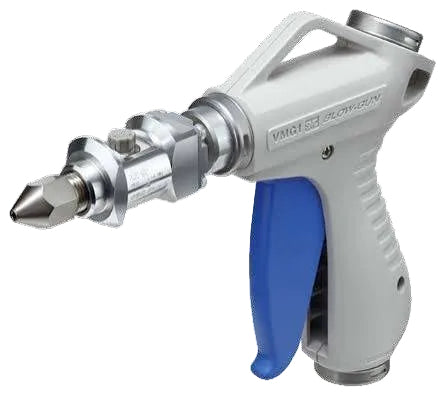

- Can be combined with the VMG blow gun (version VMG1-P)
In an SMC application example, consumption when cleaning a workbench fell from 385 to 110 l/min. The values are manufacturer data and depend on the individual case.
