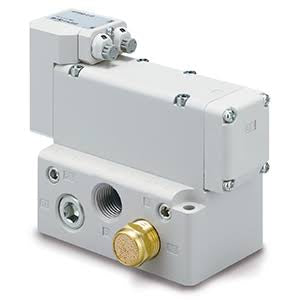

SMC AXTS040-X202 – Pulse Blow Valve
Price on request
Shipping calculated at checkout.
This product is sold exclusively to commercial customers and specialist companies.
Our prices are net (plus VAT) and may vary depending on quantity, project scope and technical configuration.
For personal advice, a non-binding quote or technical questions, we are happy to assist you at any time.
Please use our contact form for this!
Questions about this product?
We're happy to help.
The SMC AXTS040-X202 converts continuous blowing into pulsed blowing and thus saves compressed air. It works purely pneumatically with a built-in pilot valve and needs no electrical control.
Technical data
- Operating pressure: 0.2 to 1.0 MPa (the inlet pressure must not fall below 0.2 MPa during operation), proof pressure 1.5 MPa
- Pulse frequency: 1 to 12 Hz, ON and OFF time adjustable separately with needles
- Nominal size 1/2, flow 3,316 l/min (ANR), Cv 3.4
- Port thread: Rc, G, NPT or NPTF
- Metal seal, lubrication-free, fluid and ambient temperature –5 to 50 °C (no freezing)
- Weight approx. 1,400 g
- Installed between an existing blow valve and the nozzle; little dependence on pipe diameter, pipe length and nozzle type
According to SMC, consumption can be reduced by up to 50%; in an application example for tool cooling it fell from 697 to 302 l/min. The values are manufacturer data and depend on the individual case.
