HM-AP5DN-W/W-AI76

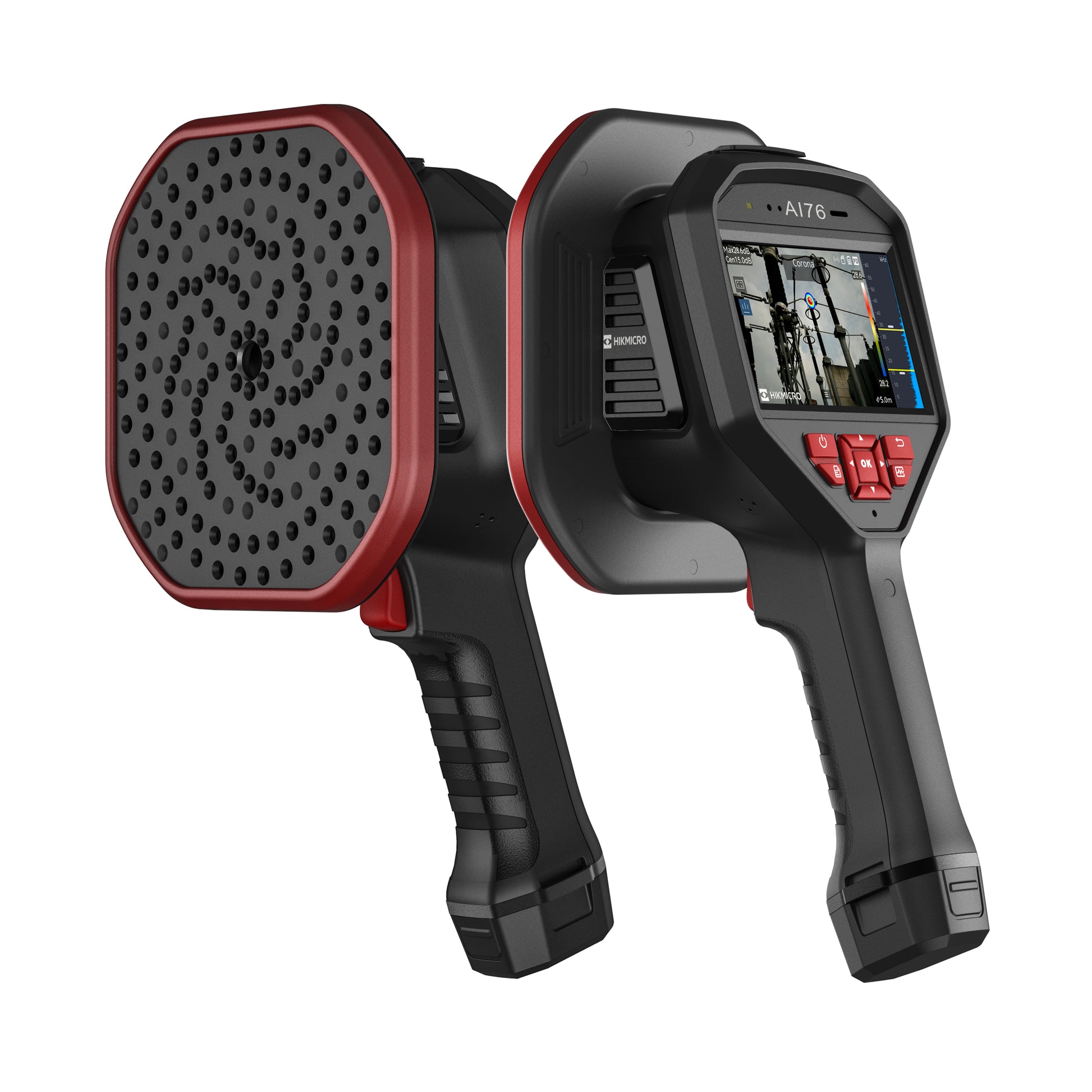

HIKMICRO AI76 – High-End Acoustic Imaging Camera with Maximum Precision
Out of stock
Regular price
€9.099,00
Sale price
€9.099,00
Regular price
€9.099,00
Unit price
per
Want next day delivery? Be quick!
Sorry, it's out of stock.
But we can let you know when it's back in.
Questions about this product?
We're happy to help.
Sold out
Key Features
- High-end acoustic imaging camera for the most demanding industrial applications
- 136 low-noise MEMS microphones for maximum sensitivity
- Wide frequency bandwidth from 0–96 kHz
- Range from 0.3 m to 150 m for large facilities
- Real-time visualization of leaks and electrical anomalies
- Combination of acoustic analysis and visible-light camera
Technical Data
| Feature | Specification |
|---|---|
| Number of microphones | 136 MEMS microphones (low-noise) |
| Frequency range | 0 – 96 kHz |
| Measuring distance | 0.3 m to 150 m |
| Display | 4.3" LCD touchscreen (800 × 480) |
| Visible-light camera | 5 MP |
| Image modes | Acoustic image, visual, overlay |
| Color schemes | 8 selectable acoustic palettes |
| Interfaces | Wi-Fi, USB-C, HDMI |
| Battery life | up to 10 hours (typical, usage-dependent) |
| Protection class | IP54 |
Applications
- High-precision compressed air and gas leak detection
- Partial discharge diagnosis in medium- and high-voltage installations
- Energy efficiency analysis and cost optimization
- Industrial maintenance and equipment monitoring
- Condition monitoring and predictive maintenance
- Inspections over long distances or in hard-to-reach areas
Additional Features
- Automatic classification of electrical partial discharges
- Real-time display of leak rate and sound intensity
- Overlay of acoustic image and visual capture
- High sensitivity for detecting even the smallest fault sources
- Rugged, industrial-grade housing
Electrical Partial Discharge Detection
The HIKMICRO AI76 supports the reliable identification of various types of electrical partial discharges, making it especially suitable for use in high-voltage and power installations:
- Corona discharge
- Floating discharge
- Surface discharge
- Particle discharge
Scope of Delivery
- HIKMICRO AI76 acoustic imaging camera
- 3× Li-ion batteries
- Dual charging station
- Power supply with adapters
- USB cable
- HDMI cable
- SD card
- Microphone protective cap
- Wrist strap
- Accessory bag
- Carrying case
- Quick start guide
Alternative Models
- AI56 – all-round model for leak detection and partial discharge diagnosis (64 microphones)
- AI56L – specialized variant for leak detection without partial discharge function
Conclusion
The HIKMICRO AI76 is the most powerful model in the AI series, offering maximum sensitivity and the highest precision. It is the ideal solution for complex industrial and energy applications where even the smallest leaks and electrical faults must be reliably detected.
