HIKMICRO AI56 – High-Precision Acoustic Imaging Camera for Leak and Partial Discharge Diagnosis
Low stock! Only 1 left
Regular price
€5.999,00
Sale price
€5.999,00
Regular price
€5.999,00
Unit price
per
Want next day delivery? Be quick!
Questions about this product?
We're happy to help.
Key Features
- Professional acoustic imaging camera for leak and partial discharge diagnostics
- 64 low-noise MEMS microphones for precise sound localization
- Wide frequency bandwidth from 0–96 kHz
- Range from 0.3 m to 150 m for large facilities
- Real-time analysis of leak rate, cost and sound intensity
- 4.3" LCD touchscreen with visual and acoustic overlay

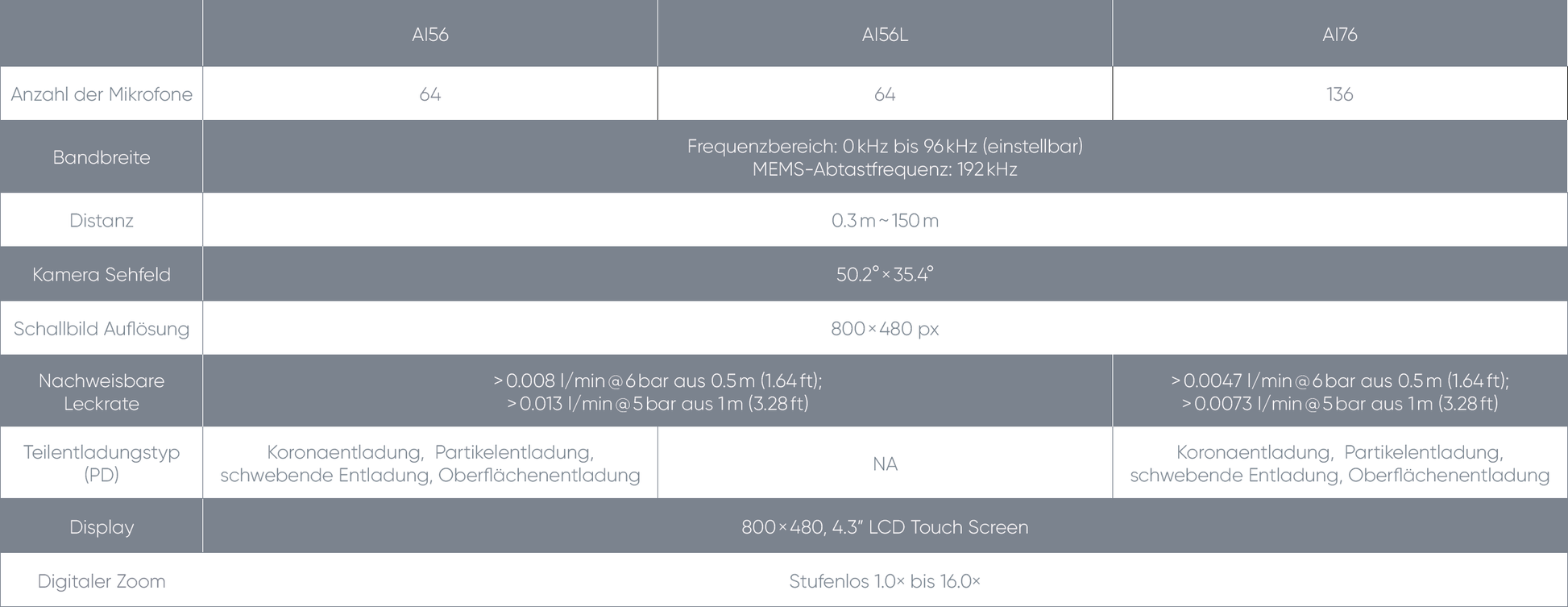

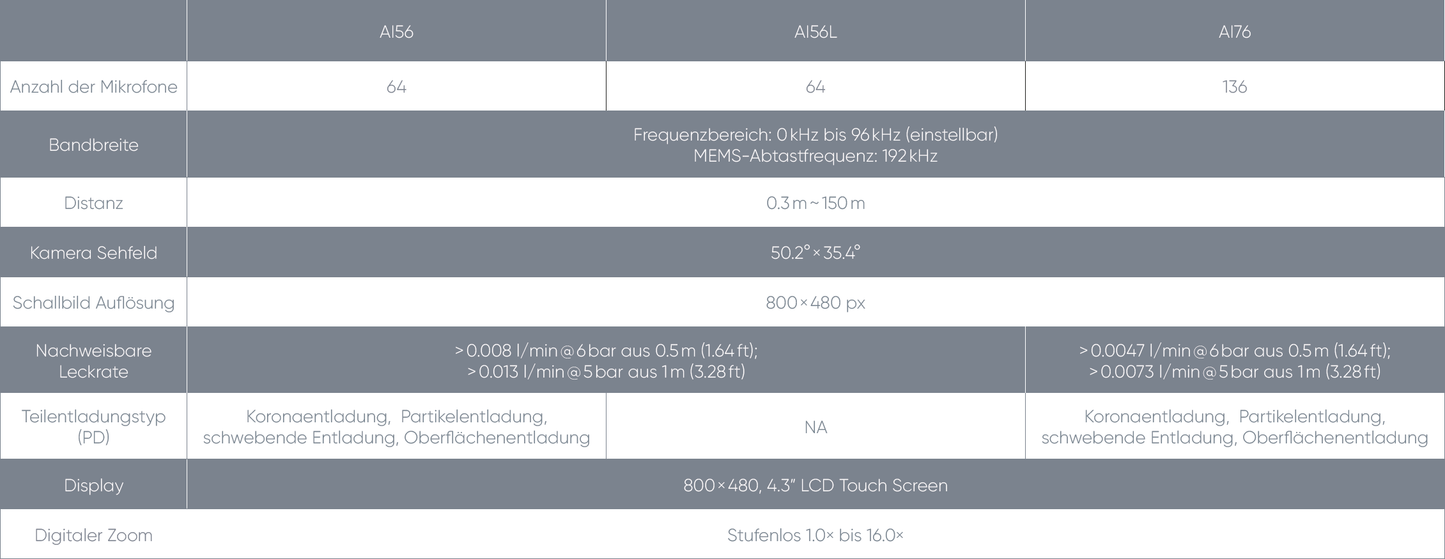

Technical Data
| Feature | Specification |
|---|---|
| Number of microphones | 64 MEMS microphones (low-noise) |
| Frequency range | 0 – 96 kHz |
| Measuring distance | 0.3 m to 150 m |
| Display | 4.3" LCD touchscreen (800 × 480) |
| Visible-light camera | 5 MP |
| Image modes | Acoustic image, visual, overlay |
| Color schemes | 8 selectable acoustic palettes |
| Interfaces | Wi-Fi, USB-C, HDMI |
| Battery life | up to 10.5 hours (with 3 batteries) |
| Protection class | IP54 |
Applications
- Compressed air and gas leak detection
- Energy efficiency analysis
- Industrial maintenance and upkeep
- Condition monitoring and predictive maintenance
- Diagnosis of electrical partial discharges
- Inspection of hard-to-reach or noisy environments
Additional Features
- Real-time visualization of sound sources
- Calculation of leak rate and energy costs
- Combination of acoustic localization and visible-light camera
- Automatic detection of electrical partial discharges
- Rugged, industrial-grade housing
Electrical Partial Discharge Detection
The HIKMICRO AI56 enables automatic identification of various types of electrical partial discharges, making it particularly suitable for high- and medium-voltage installations:
- Corona discharge
- Floating discharge
- Surface discharge
- Particle discharge
Scope of Delivery
- HIKMICRO AI56 acoustic imaging camera
- 3× Li-ion batteries
- Dual charging station
- Power supply with adapters
- USB cable
- HDMI cable
- SD card
- Microphone protective cap
- Wrist strap
- Accessory bag
- Carrying case
- Quick start guide
Conclusion
The HIKMICRO AI56 is a powerful acoustic imaging camera for professional applications in industry and energy supply. It enables fast and reliable detection of leaks and electrical faults, contributing significantly to increased efficiency and equipment reliability.
